Encoder ENC 16 EASY Absolute, with BiSS-C interface

Part number 488783

Encoder ENC 16 EASY Absolute, with BiSS-C interface
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €104.10
5-19 €90.84
20-49 €77.47
from 50 On request

Sensors can be purchased only as a component of a combination.

Specifications

Technical illustrations

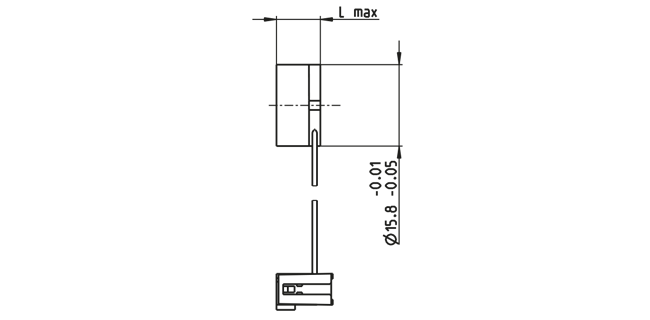

  • Dimension drawing

Information: Drawings are not to scale.

General information
Steps per turn 4096
Resolution 12 bit single turn
Max. length of encoder housing 8.5 mm
Max. electrical speed 120000 rpm
Max. mechanical speed 25000 rpm
Technical Data
Data encoding binary
Min. clock frequency 0.6 MHz
Max. clock frequency 10 MHz
Timeout 2 us
Supply voltage Vcc 5.0V ± 10.0%
Output signal CMOS
Output signal Absolute BiSS-C
Driver used logic CMOS
Output current per channel -20...20 mA
Direction of rotation positive Counting CW
Typical current draw at standstill 17 mA
Max. moment of inertia of code wheel 0.1 gcm²
Operating temperature -40...+100 °C
Orientation of encoder output to motor flange 0 °
Product
Weight 9 g

Description

maxon ENX absolute encoders feature a robust design and high signal quality. The ENX EASY Absolute is a single-turn absolute encoder with 4096 steps per turn for SSI or BiSS-C interfaces. The SSI or BiSS-C signal protocols can be programmed at the factory.
