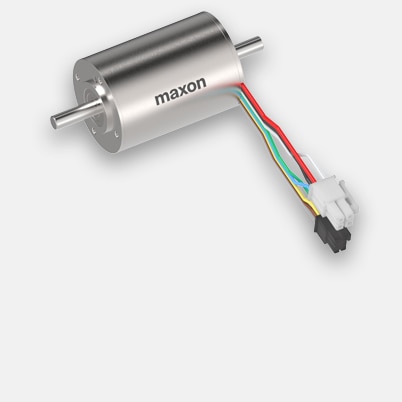

EC-i 40 Ø40 mm, brushless, 100 Watt, with Hall sensors | High Torque

Part number 488607

EC-i 40 Ø40 mm, brushless, 100 Watt, with Hall sensors
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €332.83
5-19 €283.89
20-49 €234.52
from 50 On request

Specifications

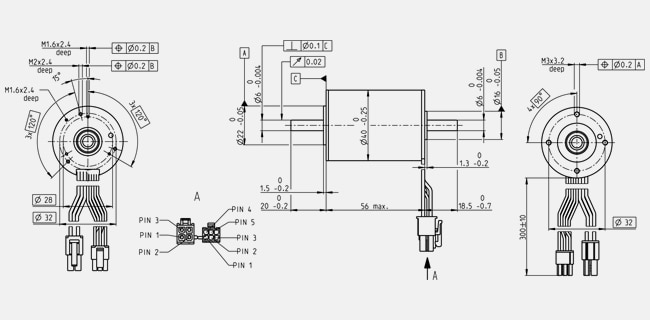

Technical illustrations

Information: Drawings are not to scale.

Values at nominal voltage
Nominal voltage 48 V
No load speed 5000 rpm
No load current 150 mA
Nominal speed 4390 rpm
Nominal torque (max. continuous torque) 224 mNm
Nominal current (max. continuous current) 2.41 A
Stall torque 2080 mNm
Stall current 48.3 A
Max. efficiency 89 %
Characteristics
Terminal resistance 0.994 Ω
Terminal inductance 0.995 mH
Torque constant 91 mNm/A
Speed constant 105 rpm/V
Speed / torque gradient 1.15 rpm/mNm
Mechanical time constant 0.528 ms
Rotor inertia 44 gcm²
Thermal data
Thermal resistance housing-ambient 7.17 K/W
Thermal resistance winding-housing 1.35 K/W
Thermal time constant winding 25.8 s
Thermal time constant motor 1400 s
Ambient temperature -40...+100 °C
Max. winding temperature +155 °C
Mechanical data
Bearing type ball bearings
Max. speed 8000 rpm
Axial play 0 mm, at radial load < 9 N
0.15 mm, at radial load > 9 N
Max. axial load (dynamic) 7 N
Max. force for press fits (static) 87 N
(static, shaft supported) 3000 N
Max. radial load 29.9 N, 5 mm from flange
Other specifications
Number of pole pairs 7
Number of phases 3
Number of autoclave cycles 0
Product
Weight 390 g
  • Operating Range

    Continuous operation range


    Short term operation range


Description

Because of their optimized magnetic core, the brushless EC-i motors with iron core windings offer a very high torque density and low cogging torque. The multi-pole internal rotor is extremely dynamic. Its solid design with a steel flange and housing make this motor suitable for a wide range of applications. Order your EC-i drive online now.
