| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €112.21 |
| 5-19 | €91.68 | |
| 20-49 | €76.00 | |
| from 50 | On request |
NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.
Specifications
Technical illustrations

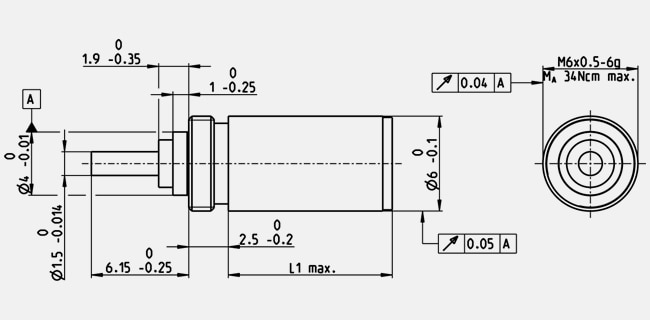

- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GP |
| Outer diameter | 6 mm |
| Version | Standard version |
| Gearhead Data | |
| Reduction | 3.9 : 1 |
| Absolute reduction | 27/7 |
| Max. motor shaft diameter | 1 mm |
| Number of stages | 1 |
| Max. continuous torque | 0.002 Nm |
| Max. intermittent torque | 0.005 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 88 % |
| Average backlash no load | 1.8 ° |
| Mass inertia | 0.0008 gcm² |
| Gearhead length (L1) | 5.3 mm |
| Max. transmittable power (continuous) | 0.63 W |
| Max. transmittable power (intermittent) | 0.79 W |
| Technical Data | |
| Bearing at output | ball bearing |
| Radial play | max. 0.12 mm, 5 mm from flange |
| Axial play | 0 - 0.1 mm |
| Max. radial load | 5 N, 5 mm from flange |
| Max. force for press fits | 10 N |
| Max. continuous input speed | 15000 rpm |
| Max. intermittent input speed | 40000 rpm |
| Recommended temperature range | -40...+100 °C |
| Extended temperature range | 100...+100 °C |
| Product | |
| Weight | 2 g |
