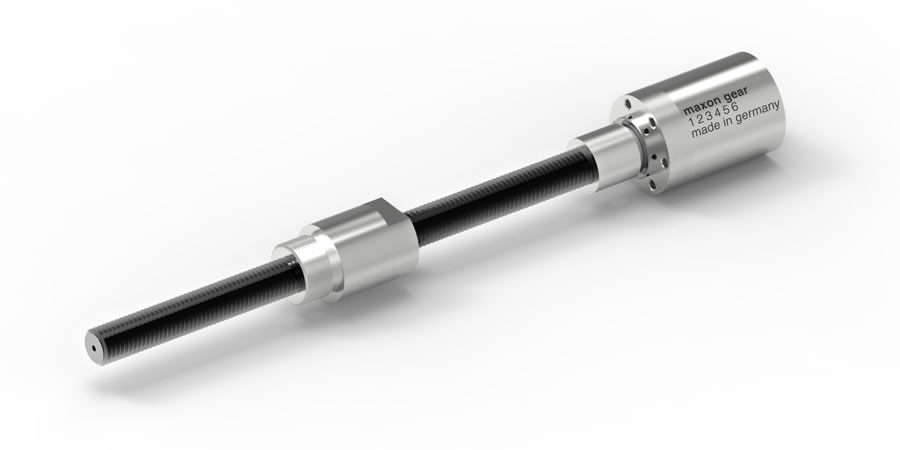

Screw Drive GP 16 S Ø16 mm, Metric spindle, M6 x 1, Ceramic Version | Ceramic Version
Part number 424241
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €507.67 |
| 5-19 | €437.14 | |
| 20-49 | €387.57 | |
| from 50 | On request |
Specifications
Technical illustrations
- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GS |
| Outer diameter | 16 mm |
| Version | Spindle drive with metric screw |
| Gearhead Data | |
| Number of stages | 0 |
| Reduction | 1 : 1 |
| Absolute reduction | 1/1 |
| Max. motor shaft diameter | 1 mm |
| Max. feed velocity | 50 mm/s |
| Max. feed force continuous | 44 N |
| Max. feed force intermittent | 134 N |
| Direction of rotation, drive to output | = |
| Max. efficiency | 41 % |
| Average backlash no load | 1 ° |
| Mechanical positioning accuracy | 0.166 mm |
| Mass inertia | 0.23 gcm² |
| Gearhead length (L1) | 19.2 mm |
| Max. transmittable power (continuous) | 2.2 W |
| Max. transmittable power (intermittent) | 2.75 W |
| Technical Data | |
| Spindle length | 100.8 mm |
| Bearing at output | ball bearing |
| Radial play | max. 0.08 mm, 6 mm from flange |
| Axial play of the nut | preloaded |
| Max. radial load | 20 N, 6 mm from flange |
| Max. axial load (dynamic) | 44 N |
| Max. force for press fits | 500 N |
| Max. continuous input speed | 3000 rpm |
| Max. intermittent input speed | 4500 rpm |
| Recommended temperature range | -15...+80 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 55 g |
Description
Compact, easy to configure screw drives as complete systems. With integrated axial bearing forhigh axial loads. Versions with metric spindle, ball screw and trapezoidal spindle.
