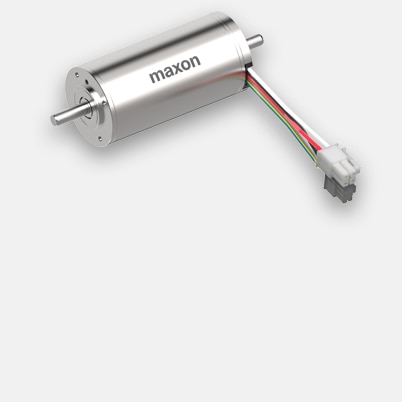

EC 40 Ø40 mm, brushless, 170 Watt, with Hall sensors

Part number 393024

EC 40 Ø40 mm, brushless, 170 Watt, with Hall sensors
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €712.40
5-19 €568.72
20-49 €468.51
from 50 On request

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

Specifications

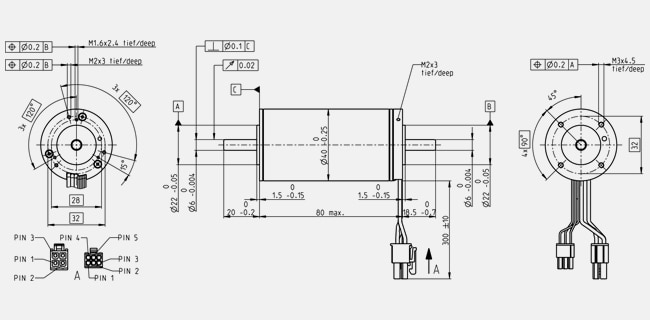

Technical illustrations

Information: Drawings are not to scale.

Values at nominal voltage
Nominal voltage 42 V
No load speed 10100 rpm
No load current 243 mA
Nominal speed 9380 rpm
Nominal torque (max. continuous torque) 160 mNm
Nominal current (max. continuous current) 4.21 A
Stall torque 2740 mNm
Stall current 69.1 A
Max. efficiency 89 %
Characteristics
Terminal resistance 0.608 Ω
Terminal inductance 0.246 mH
Torque constant 39.6 mNm/A
Speed constant 241 rpm/V
Speed / torque gradient 3.7 rpm/mNm
Mechanical time constant 2.08 ms
Rotor inertia 53.8 gcm²
Thermal data
Thermal resistance housing-ambient 5.21 K/W
Thermal resistance winding-housing 1.05 K/W
Thermal time constant winding 17 s
Thermal time constant motor 1910 s
Ambient temperature -40...+100 °C
Max. winding temperature +155 °C
Mechanical data
Max. speed 18000 rpm
Other specifications
Number of pole pairs 1
Number of phases 3
Product
Weight 580 g
  • Operating Range

    Continuous operation range


    Short term operation range


Description

The electronically commutated EC motors are characterized especially by their favorable torque characteristics, high power, extremely broad speed range and, of course, by their unsurpassed service life.

Videos
