Details
EC 45 flat Ø45 mm, brushless, 50 Watt, with integrated electronics, with cover | 1-Q-speed controller
Part number 370427
This product is being discontinued. Our sales team will be happy to inform you about last order dates and alternatives.
Specifications
Technical illustrations

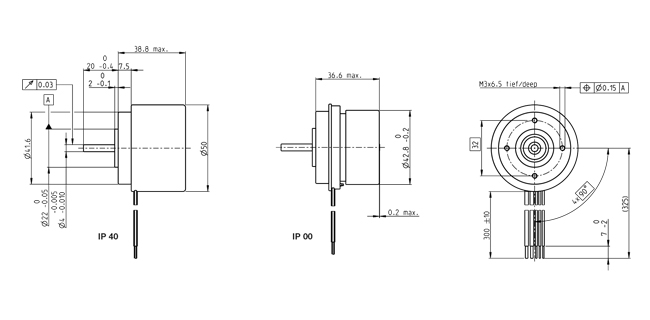

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 4500 rpm |
| No load current | 191 mA |
| Nominal speed | 4500 rpm |
| Nominal torque (max. continuous torque) | 116 mNm |
| Nominal current (max. continuous current) | 2.85 A |
| Stall torque | 157 mNm |
| Stall current | 4.41 A |
| Max. efficiency | 80 % |
| Characteristics | |
| Operating mode | Speed |
| Terminal resistance | 0.264 Ω |
| Terminal inductance | 0.413 mH |
| Torque constant | 35.7 mNm/A |
| Speed constant | 268 rpm/V |
| Speed / torque gradient | 1.98 rpm/mNm |
| Mechanical time constant | 3.76 ms |
| Rotor inertia | 181 gcm² |
| Speed set value input | 0.33..10.8 |
| Scaling speed set value input | 600 rpm/V |
| Speed range | 200..6480 |
| Thermal data | |
| Thermal resistance housing-ambient | 4.79 K/W |
| Thermal resistance winding-housing | 6.7 K/W |
| Thermal time constant winding | 21 s |
| Thermal time constant motor | 239 s |
| Ambient temperature | -40...+85 °C |
| Max. winding temperature | +125 °C |
| Mechanical data | |
| Bearing type | ball bearings |
| Max. speed | 10000 rpm |
| Axial play | {0} {1}, at radial load {2} {3} {4} |
| 0.14 mm, at radial load > 7 N | |
| Max. axial load (dynamic) | 6.8 N |
| Max. force for press fits (static) | 95 N |
| (static, shaft supported) | 1000 N |
| Max. radial load | 63 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 8 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 260 g |
