A-max 12 Ø12 mm, Precious Metal Brushes CLL, 0.5 Watt, with cable
Part number 265392
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €64.21 |
| 5-19 | €58.63 | |
| 20-49 | €53.68 | |
| from 50 | On request |
Specifications
Technical illustrations

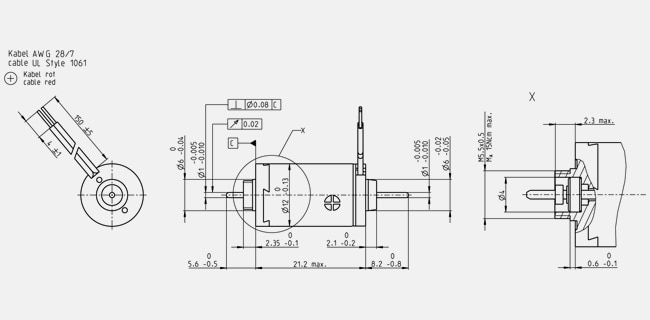

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 12 V |
| No load speed | 12100 rpm |
| No load current | 7.38 mA |
| Nominal speed | 4620 rpm |
| Nominal torque (max. continuous torque) | 0.908 mNm |
| Nominal current (max. continuous current) | 0.106 A |
| Stall torque | 1.52 mNm |
| Stall current | 0.168 A |
| Max. efficiency | 63 % |
| Characteristics | |
| Terminal resistance | 71.6 Ω |
| Terminal inductance | 1.74 mH |
| Torque constant | 9.06 mNm/A |
| Speed constant | 1050 rpm/V |
| Speed / torque gradient | 8330 rpm/mNm |
| Mechanical time constant | 20.5 ms |
| Rotor inertia | 0.235 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 44.5 K/W |
| Thermal resistance winding-housing | 15 K/W |
| Thermal time constant winding | 4.78 s |
| Thermal time constant motor | 267 s |
| Ambient temperature | -30...+65 °C |
| Max. winding temperature | +85 °C |
| Mechanical data | |
| Bearing type | sleeve bearing |
| Max. speed | 14000 rpm |
| Axial play | 0.05 - 0.15 mm |
| Radial play | 0.012 mm |
| Max. axial load (dynamic) | 0.15 N |
| Max. force for press fits (static) | 15 N |
| (static, shaft supported) | 70 N |
| Max. radial load | 0.4 N, 4 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 7 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 12 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
