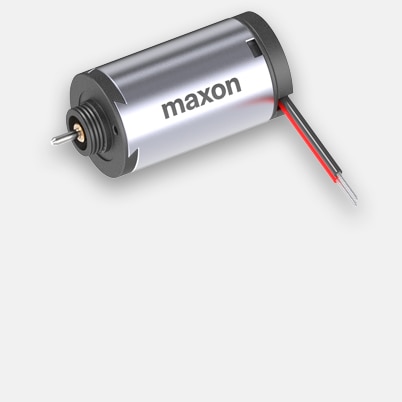

A-max 12 Ø12 mm, Precious Metal Brushes CLL, 0.75 Watt, with cable
Part number 265378
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €63.47 |
| 5-19 | €57.89 | |
| 20-49 | €53.05 | |
| from 50 | On request |
Specifications
Technical illustrations

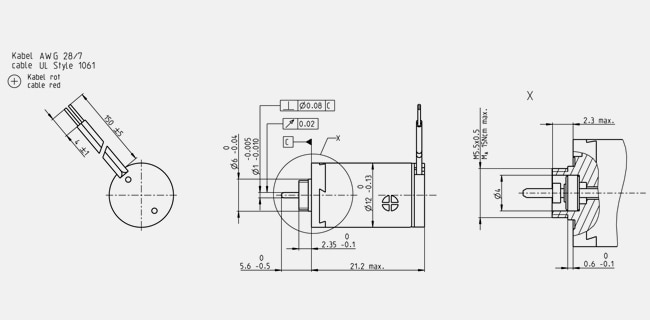

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 15 V |
| No load speed | 13800 rpm |
| No load current | 4.2 mA |
| Nominal speed | 5030 rpm |
| Nominal torque (max. continuous torque) | 0.804 mNm |
| Nominal current (max. continuous current) | 0.0836 A |
| Stall torque | 1.29 mNm |
| Stall current | 0.129 A |
| Max. efficiency | 68 % |
| Characteristics | |
| Terminal resistance | 116 Ω |
| Terminal inductance | 2.13 mH |
| Torque constant | 10 mNm/A |
| Speed constant | 952 rpm/V |
| Speed / torque gradient | 11000 rpm/mNm |
| Mechanical time constant | 21.1 ms |
| Rotor inertia | 0.183 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 44.5 K/W |
| Thermal resistance winding-housing | 15 K/W |
| Thermal time constant winding | 3.64 s |
| Thermal time constant motor | 245 s |
| Ambient temperature | -30...+65 °C |
| Max. winding temperature | +85 °C |
| Mechanical data | |
| Bearing type | sleeve bearing |
| Max. speed | 19000 rpm |
| Axial play | 0.05 - 0.15 mm |
| Radial play | 0.012 mm |
| Max. axial load (dynamic) | 0.15 N |
| Max. force for press fits (static) | 15 N |
| (static, shaft supported) | 70 N |
| Max. radial load | 0.4 N, 4 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 7 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 11 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
