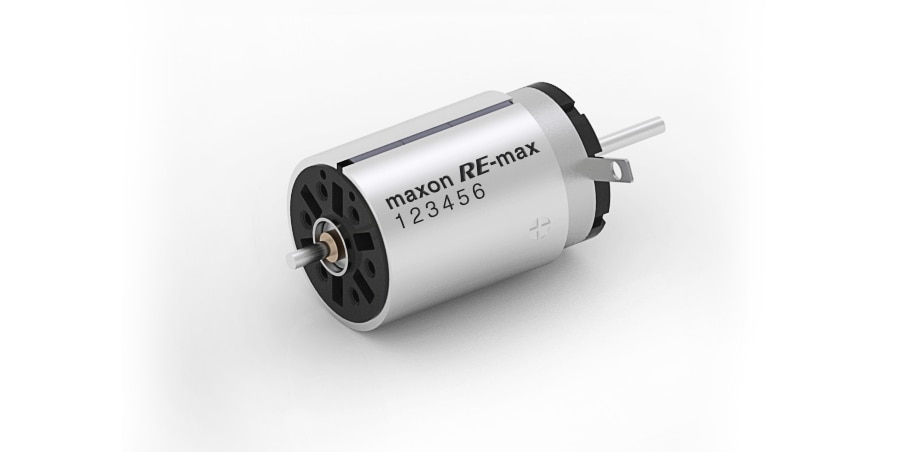

Specifications
Technical illustrations

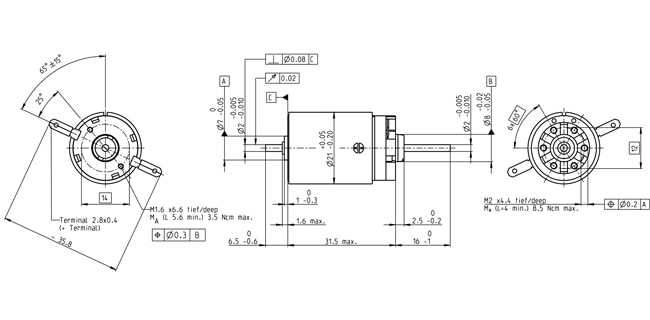

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 48 V |
| No load speed | 9320 rpm |
| No load current | 9.95 mA |
| Nominal speed | 7090 rpm |
| Nominal torque (max. continuous torque) | 6.86 mNm |
| Nominal current (max. continuous current) | 0.151 A |
| Stall torque | 29.1 mNm |
| Stall current | 0.602 A |
| Max. efficiency | 76 % |
| Characteristics | |
| Terminal resistance | 79.7 Ω |
| Terminal inductance | 2.71 mH |
| Torque constant | 48.3 mNm/A |
| Speed constant | 198 rpm/V |
| Speed / torque gradient | 326 rpm/mNm |
| Mechanical time constant | 6.77 ms |
| Rotor inertia | 1.99 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 28 K/W |
| Thermal resistance winding-housing | 8 K/W |
| Thermal time constant winding | 7.94 s |
| Thermal time constant motor | 502 s |
| Ambient temperature | -30...+85 °C |
| Max. winding temperature | +125 °C |
| Mechanical data | |
| Bearing type | sleeve bearing |
| Max. speed | 12000 rpm |
| Axial play | 0.05 - 0.15 mm |
| Radial play | 0.012 mm |
| Max. axial load (dynamic) | 1 N |
| Max. force for press fits (static) | 80 N |
| (static, shaft supported) | 420 N |
| Max. radial load | 2.7 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 9 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 42 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
