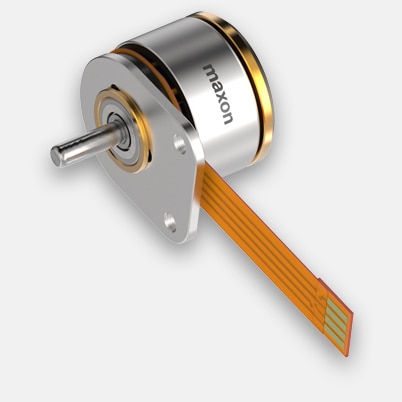

EC 14 flat Ø13.6 mm, brushless, 1.5 Watt, sensorless
Part number 236679
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €101.15 |
| 5-19 | €89.26 | |
| 20-49 | €75.37 | |
| from 50 | On request |
Specifications
Technical illustrations

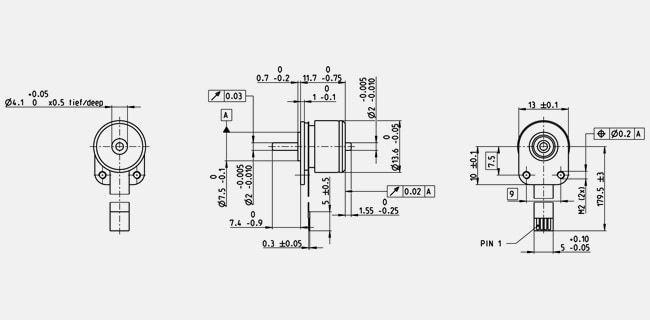

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 18 V |
| No load speed | 19900 rpm |
| No load current | 51.7 mA |
| Nominal speed | 9390 rpm |
| Nominal torque (max. continuous torque) | 1.74 mNm |
| Nominal current (max. continuous current) | 0.256 A |
| Stall torque | 3.6 mNm |
| Stall current | 0.474 A |
| Max. efficiency | 48 % |
| Characteristics | |
| Terminal resistance | 38 Ω |
| Terminal inductance | 0.962 mH |
| Torque constant | 7.6 mNm/A |
| Speed constant | 1260 rpm/V |
| Speed / torque gradient | 6270 rpm/mNm |
| Mechanical time constant | 72.3 ms |
| Rotor inertia | 1.1 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 11.6 K/W |
| Thermal resistance winding-housing | 11.3 K/W |
| Thermal time constant winding | 1.37 s |
| Thermal time constant motor | 49.2 s |
| Ambient temperature | -40...+100 °C |
| Max. winding temperature | +125 °C |
| Mechanical data | |
| Bearing type | ball bearings |
| Max. speed | 22000 rpm |
| Axial play | {0} {1}, at radial load {2} {3} {4} |
| 0.14 mm, at radial load > 1.5 N | |
| Max. axial load (dynamic) | 1.3 N |
| Max. force for press fits (static) | 18 N |
| (static, shaft supported) | 200 N |
| Max. radial load | 3.4 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 4 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 8 g |
