NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

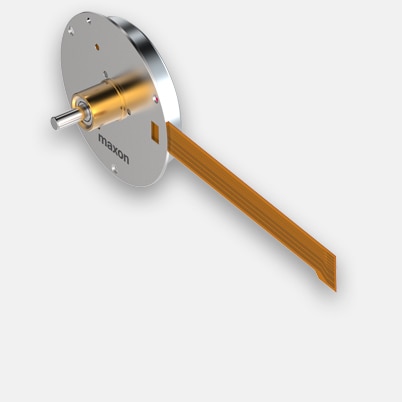

Specifications
Technical illustrations

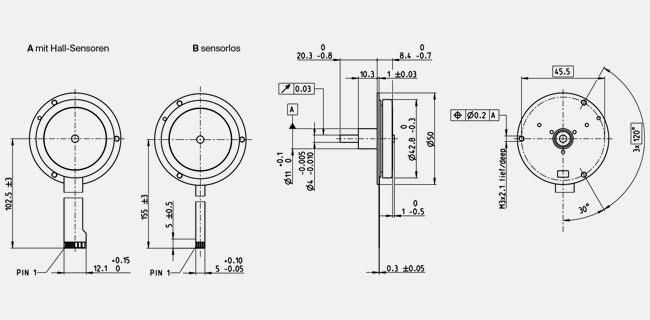

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 9 V |
| No load speed | 8000 rpm |
| No load current | 147 mA |
| Nominal speed | 4780 rpm |
| Nominal torque (max. continuous torque) | 23.8 mNm |
| Nominal current (max. continuous current) | 2.04 A |
| Stall torque | 92.6 mNm |
| Stall current | 8.9 A |
| Max. efficiency | 76 % |
| Characteristics | |
| Terminal resistance | 1.01 Ω |
| Terminal inductance | 0.32 mH |
| Torque constant | 10.4 mNm/A |
| Speed constant | 918 rpm/V |
| Speed / torque gradient | 89.3 rpm/mNm |
| Mechanical time constant | 48.9 ms |
| Rotor inertia | 52.3 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 6.59 K/W |
| Thermal resistance winding-housing | 5.56 K/W |
| Thermal time constant winding | 8.36 s |
| Thermal time constant motor | 188 s |
| Ambient temperature | -40...+100 °C |
| Max. winding temperature | +125 °C |
| Mechanical data | |
| Bearing type | ball bearings |
| Max. speed | 10000 rpm |
| Axial play | 0 mm, at radial load < 5 N |
| 0.6 mm, at radial load > 5 N | |
| Max. axial load (dynamic) | 4.8 N |
| Max. force for press fits (static) | 45 N |
| (static, shaft supported) | 1000 N |
| Max. radial load | 12.5 N, 15 mm from flange |
| Other specifications | |
| Number of pole pairs | 8 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 57 g |
