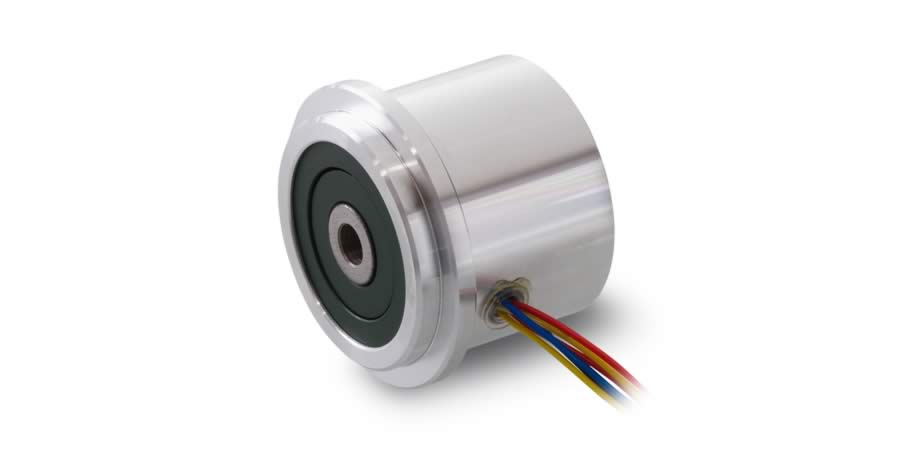

Resolver Res 26, 10 Volt

Part number 199287

Resolver Res 26, 10 Volt
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €357.04
5-19 €320.62
20-49 €291.46
from 50 On request

Sensors can be purchased only as a component of a combination.

Specifications

Technical illustrations

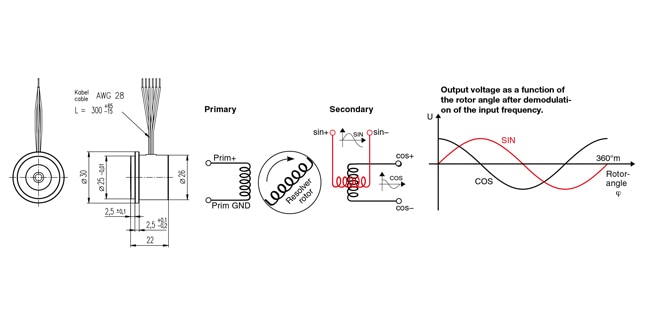

  • Dimension drawing

Information: Drawings are not to scale.

General information
Max. mechanical speed 10000 rpm
Shaft diameter 6 mm
Technical Data
Input voltage 10 V peak, 10 kHz
Electrical error ±10 min.
Phase shift 90 °e
Phase shift, inaccuracy 45 °e
Rotor inertia 6 gcm²
Operating temperature -55...+155 °C
Product
Weight 40 g

Description

High precision encoders, DC tachometers and resolvers with a high signal resolution are mounted exclusively on motors with through shafts for resonance reasons. The assembly requires adjustment to the motors and may only be done in the delivery plant.
