Planetary Gearhead GP 22 C Ø22 mm, 0.5 - 2.0 Nm | Ceramic Version
Part number 143974
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €133.05 |
| 5-19 | €107.26 | |
| 20-49 | €90.10 | |
| from 50 | On request |
Specifications
Technical illustrations

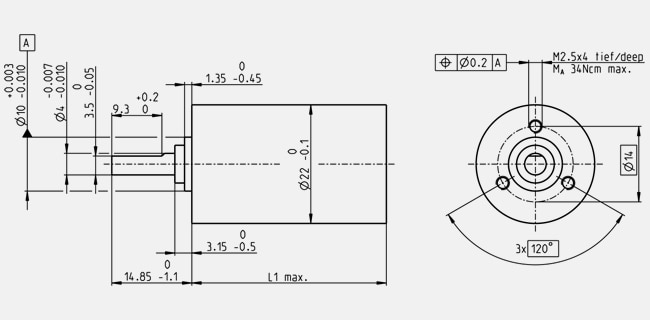

- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GP |
| Outer diameter | 22 mm |
| Version | Ceramic version |
| Gearhead Data | |
| Reduction | 14 : 1 |
| Absolute reduction | 225/16 |
| Max. motor shaft diameter | 4 mm |
| Number of stages | 2 |
| Max. continuous torque | 0.6 Nm |
| Max. intermittent torque | 0.9 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 70 % |
| Average backlash no load | 1.2 ° |
| Mass inertia | 0.4 gcm² |
| Gearhead length (L1) | 32.2 mm |
| Max. transmittable power (continuous) | 36 W |
| Max. transmittable power (intermittent) | 54 W |
| Technical Data | |
| Bearing at output | ball bearing |
| Radial play | max. 0.2 mm, 10 mm from flange |
| Axial play | 0 - 0.2 mm |
| Max. radial load | 50 N, 10 mm from flange |
| Max. axial load (dynamic) | 100 N |
| Max. force for press fits | 100 N |
| Max. continuous input speed | 8000 rpm |
| Max. intermittent input speed | 8000 rpm |
| Recommended temperature range | -40...+100 °C |
| Extended temperature range | 100...+100 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 55 g |
