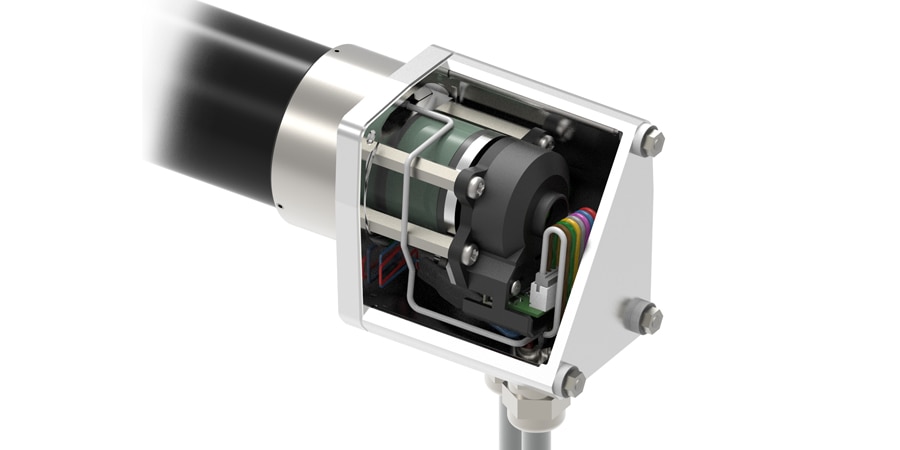

Encoder HEDL 9140, 500 CPT, 3 Channels, with Line Driver RS 422

Part number 137959

Encoder HEDL 9140, 500 CPT, 3 Channels, with Line Driver RS 422
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €245.99
5-19 €224.62
20-49 €195.99
from 50 On request

Sensors can be purchased only as a component of a combination.

Specifications

Technical illustrations

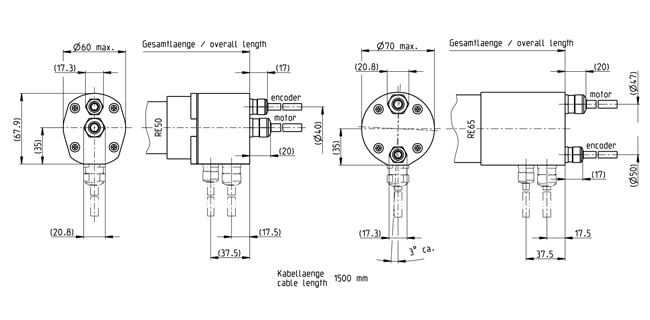

  • Dimension drawing

Information: Drawings are not to scale.

General information
Counts per turn 500
Number of channels 3
Line Driver DS26LS31
Max. mechanical speed 12000 rpm
Shaft diameter -1 mm
Technical Data
Supply voltage Vcc 5.0V ± 10.0%
Output signal EIA RS 422
Driver used logic EIA RS 422
Max. angular acceleration 250000 rad / s²
Output current per channel -20...20 mA
Signal rise time 180 ns
Measurement condition for signal rise time CL=25pF, RL=11kOhm, T=25°C
Signal fall time 40 ns
Measurement condition for signal fall time CL=25pF, RL=11kOhm, T=25°C
Phase shift 90 °e
Phase shift, inaccuracy 45 °e
Index synchronized to AB Yes
Max. moment of inertia of code wheel 0.6 gcm²
Operating temperature -40...+85 °C
Orientation of encoder output to motor flange -1 °
Product
Weight 21 g

Description

High precision encoders, DC tachometers and resolvers with a high signal resolution are mounted exclusively on motors with through shafts for resonance reasons. The assembly requires adjustment to the motors and may only be done in the delivery plant.
