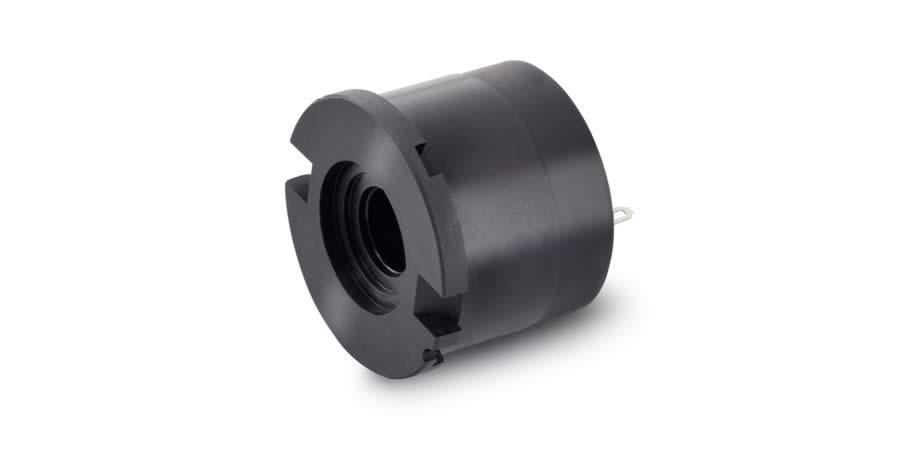

Specifications
Information: Drawings are not to scale.
| General information |
| Shaft diameter |
3 mm |
| Technical Data |
| Output voltage per 1000 rpm |
0.52 V |
| Terminal resistance tacho |
37.7 Ω |
| Typical peak-to-peak ripple |
6 % |
| Linear voltage tolerance, 500 to 5000 rpm |
0.2 % |
| Linear voltage tolerance with 10 kOhm load resistance |
0.7 % |
| Polarity error |
0.1 % |
| Temperature coefficient of EMF (magnet) |
-0.02 % / °C |
| Temperature coefficient of coil resistance |
0.4 % / °C |
| Max. current |
10 mA |
| Tolerance of output voltage |
15 % |
| Rotor inertia tacho only |
3 gcm² |
| Operating temperature |
-20...+65 °C |
| Product |
| Weight |
1 g |
Description
High precision encoders, DC tachometers and resolvers with a high signal resolution are mounted exclusively on motors with through shafts for resonance reasons. The assembly requires adjustment to the motors and may only be done in the delivery plant.
