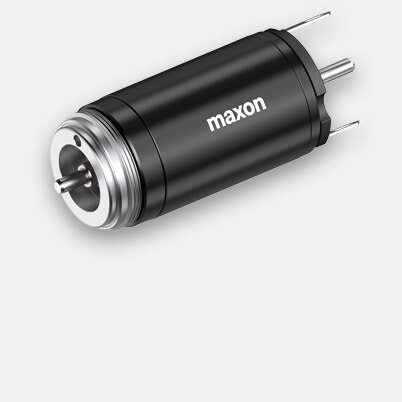

Specifications

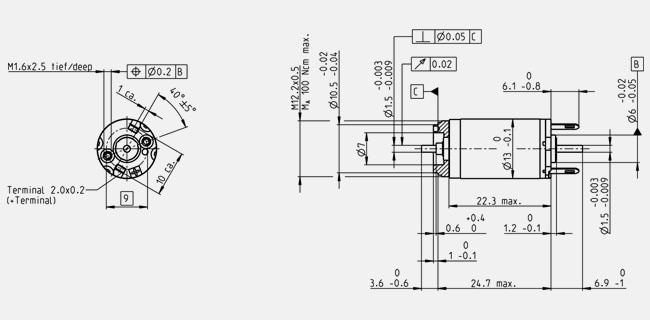

Information: Drawings are not to scale.
| Values at nominal voltage |
| Nominal voltage |
15 V |
| No load speed |
13100 rpm |
| No load current |
38.9 mA |
| Nominal speed |
7870 rpm |
| Nominal torque (max. continuous torque) |
1.21 mNm |
| Nominal current (max. continuous current) |
0.157 A |
| Stall torque |
3.23 mNm |
| Stall current |
0.335 A |
| Max. efficiency |
44 % |
| Characteristics |
| Terminal resistance |
44.8 Ω |
| Terminal inductance |
0.921 mH |
| Torque constant |
9.64 mNm/A |
| Speed constant |
990 rpm/V |
| Speed / torque gradient |
4600 rpm/mNm |
| Mechanical time constant |
14.3 ms |
| Rotor inertia |
0.297 gcm² |
| Thermal data |
| Thermal resistance housing-ambient |
46 K/W |
| Thermal resistance winding-housing |
14 K/W |
| Thermal time constant winding |
4.96 s |
| Thermal time constant motor |
231 s |
| Ambient temperature |
-20...+85 °C |
| Max. winding temperature |
+125 °C |
| Mechanical data |
| Bearing type |
sleeve bearing |
| Max. speed |
16000 rpm |
| Axial play |
0.05 - 0.15 mm |
| Radial play |
0.014 mm |
| Max. axial load (dynamic) |
0.8 N |
| Max. force for press fits (static) |
15 N |
| (static, shaft supported) |
0 N |
| Max. radial load |
1.4 N, 5 mm from flange |
| Other specifications |
| Number of pole pairs |
1 |
| Number of commutator segments |
7 |
| Number of autoclave cycles |
0 |
| Product |
| Weight |
18 g |
| | | Continuous operation range
|
| | |
|
| | | |
| | | Short term operation range
|
| | |
|
Description
maxon DC motors are high-quality motors fitted with powerful permanent magnets. The “heart” of the motor is the worldwide patented ironless rotor. For you, this means cutting-edge technology in compact, powerful and low inertia drives.
