BLDC motor, gearhead, and encoder from a single source

maxon motor introduces the world's first steam sterilizable encoder ENX EASY. It is available in an incremental (1024 counts) and an absolute version (4096 steps) for diameters of 13 and 16 mm and is designed for 1000 autoclave cycles.



The encoder can be integrated into the brushless drives ECX 13 and ECX 16 SPEED without increasing the length. When the gearheads GPX 13 and GPX 16 SPEED are added to the combination, our customers receive a fully sterilizable positioning system.

Made to order

The ENX EASY can be combined with matching BLDC motors and planetary gearheads easily and conveniently using maxon's online configurator.

To the online shop

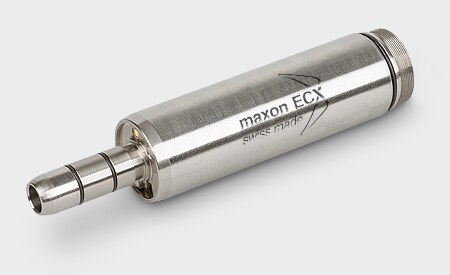

High Speed ECX motors



maxon's ECX series of brushless motors are compact, extremely high speed and smooth running. Combined with their ability to withstand up to 2000 autoclave cycles, this makes them ideally suited for use in medical power tools.



To the online shop

Super-fast ECX SPEED motors

Key features

  • up to 120,000 rpm
  • up to 104 W
  • up to 2000 autoclave cycles
  • smooth running

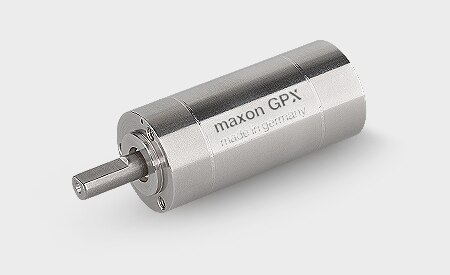

Gearheads for high torque



maxon GPX gearheads are low-noise with low-backlash. The planetary gearheads are suitable for transmitting both high torque and high speed. Easily customized and configured online.



To the online shop

Gearheads for high torque

Key features

  • short, compact design
  • low-noise, low-backlash
  • high speeds
  • up to 1000 autoclave cycles

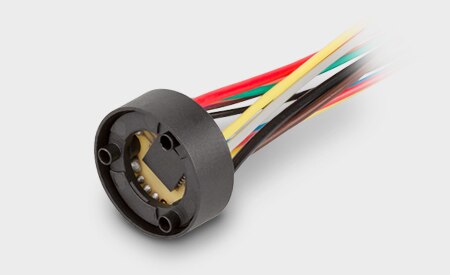

The first steam sterilisable encoder



The ENX EASY is available as an incremental (1024 pulses) and an absolute version (4096 steps) and can be integrated into the appropriate motors without increasing the length.



To the online shop

Key features

  • up to 1000 autoclave cycles
  • available in sizes 13 and 16 mm
  • 1024 pulses (incremental)
  • 4096 steps (absolute)

Quality

maxon medical is certified to EN ISO 13485. This standard has been specially designed to ensure greater reliability and traceability for products in the medical technology industry. We also implement project solutions in compliance with the Medical Device Regulation (MDR).
