Specifications
Information: Drawings are not to scale.
| Values at nominal voltage |
| Nominal voltage |
12 V |
| No load speed |
6920 rpm |
| No load current |
241 mA |
| Nominal speed |
6380 rpm |
| Nominal torque (max. continuous torque) |
94.9 mNm |
| Nominal current (max. continuous current) |
6 A |
| Stall torque |
1720 mNm |
| Stall current |
105 A |
| Max. efficiency |
88 % |
| Characteristics |
| Terminal resistance |
0.115 Ω |
| Terminal inductance |
0.0245 mH |
| Torque constant |
16.4 mNm/A |
| Speed constant |
581 rpm/V |
| Speed / torque gradient |
4.05 rpm/mNm |
| Mechanical time constant |
5.89 ms |
| Rotor inertia |
139 gcm² |
| Thermal data |
| Thermal resistance housing-ambient |
4.65 K/W |
| Thermal resistance winding-housing |
1.93 K/W |
| Thermal time constant winding |
41.9 s |
| Thermal time constant motor |
809 s |
| Ambient temperature |
-30...+100 °C |
| Max. winding temperature |
+155 °C |
| Mechanical data |
| Bearing type |
Waelzlager |
| Max. speed |
12000 rpm |
| Axial play |
0.05 - 0.15 mm |
| Radial play |
0.025 mm |
| Max. axial load (dynamic) |
5.6 N |
| Max. force for press fits (static) |
110 N |
| (static, shaft supported) |
1200 N |
| Max. radial load |
28 N, 5 mm from flange |
| Other specifications |
| Number of pole pairs |
1 |
| Number of commutator segments |
13 |
| Number of autoclave cycles |
0 |
| Product |
| Weight |
480 g |
| | | Continuous operation range
|
| | |
|
| | | |
| | | Short term operation range
|
| | |
|
Description

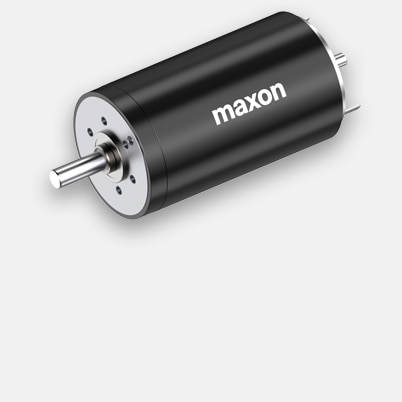

maxon DC motors are high-quality motors fitted with powerful permanent magnets. The “heart” of the motor is the worldwide patented ironless rotor. For you, this means cutting-edge technology in compact, powerful and low inertia drives.
